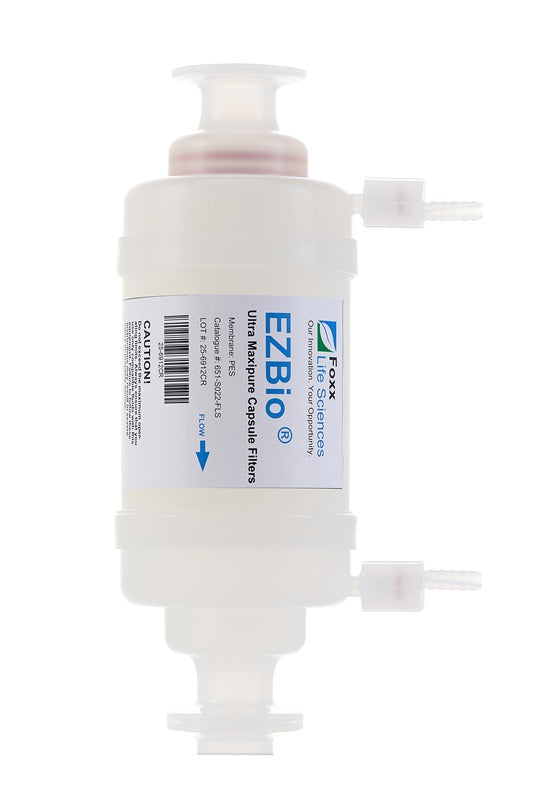

EZBio Ultra Maxpure Capsule Filter 5", Double-Layer PES, Silicone O-Ring, Non-Sterile, 1/CS

EZBio Ultra Maxpure Capsule Filter 5", Double-Layer PES, Silicone O-Ring, Non-Sterile, 1/CS

Foxx Life Sciences' EZBio® Ultra Capsule Filters are pre-assembled, enclosed filtration devices designed for controlling micro-organisms from entering sterile fluids. These filters have...
Brand: Foxx Life Sciences
|
Product ID: 651-S020-FLS
|
Availability: In Stock
Type: Capsule Filter
$432.73
$560.00
$432.73
Save $127.27
Please hurry! Only 100 left in stock
EZBio Ultra Maxpure Capsule Filter 5", Double-Layer PES, Silicone O-Ring, Non-Sterile, 1/CS

Foxx Life Sciences

EZBio Ultra Maxpure Capsule Filter 5", Double-Layer PES, Silicone O-Ring, Non-Sterile, 1/CS

$560.00 $432.73
EZBio Ultra Maxpure Capsule Filter 5", Double-Layer PES, Silicone O-Ring, Non-Sterile, 1/CS

Foxx Life Sciences

EZBio Ultra Maxpure Capsule Filter 5", Double-Layer PES, Silicone O-Ring, Non-Sterile, 1/CS

$560.00 $432.73
Tubing Connections: 0.25" Hose barb
Pore Size: 0.2µm

Foxx Life Sciences' EZBio® Ultra Capsule Filters are pre-assembled, enclosed filtration devices designed for controlling micro-organisms from entering sterile fluids. These filters have low protein binding and a nice compact size for OEM equipment. Our Capsule filters feature high grade, double-layered Polyether sulfone (PES) membrane, with bacterial retention rate up to 0.2 µm and 0.45 µm. Available in wide range of sizes from 2" to 40" with high surface area membrane with reliable, consistent and repeatable filtrate quality. These filters are tested for eliminating Brevundimonas diminuta at Test concentration of 107 CFU/cm2. The inlet/outlet configurations we offer - includes hose barbs, female NPT, and sanitary connections - these capsule filters are suitable for a wide range of bioprocessing applications. They are designed to operate at pressures up to 5.5 bar (80 psi), making them ideal for critical filtration tasks in pharmaceutical, biotechnology, and industrial processes.

  • PES membrane reinforced with polypropylene
  • Low pressure drops yield high flow rates, reducing processing time
  • Double layered
  • Cartridge can be Gamma-sterilized and autoclavable up to 20 times
  • Materials comply with USP Class VI standards
  • Buffer preparation
  • Cell culture media preparation, protein purification
  • High-purity chemical filtration
  • Sample preparation
Capsule Material Polypropylene
O-ring Material Silicone
Membrane material PES
Effective Area 3.25 ft²
Connector configurations 0.25" Hose barb, 0.5" Hose Barb, 0.5" Female NPT, 1" Sanitary (mates also with 1.5"), Graduated Hose barb (0.25"/0.375"/0.5")
Pore Size 0.2µm
Maximum Differential Pressure Forward: 75 psid (5.1 bar) @ 75F (24°C) 40 psid (2.8 bar) @ 180F (82°C) Reverse: 50 psid (3.4 bar) @ 75F (24°C)
Maximum Operating Temperature 180 F (82°C) Continuous Duty
