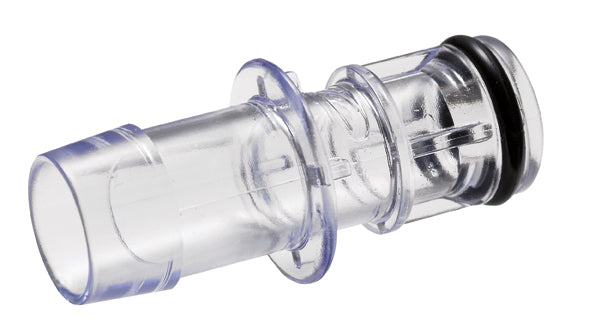

CPC MPC Connector Coupling Insert (Male) MPC22006T03 - MPC to 3/8" HB, Non-Valved, Polycarbonate (PC), Class VI
CPC MPC Connector Coupling Insert (Male) MPC22006T03 - MPC to 3/8" HB, Non-Valved, Polycarbonate (PC), Class VI

  • Guaranteed Products

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    Technical Support

  • Worldwide Delivery

    Deliver Worldwide

CPC MPC Connector Coupling Insert (Male) MPC22006T03 - MPC to 3/8" HB, Non-Valved, Polycarbonate (PC), Class VI

MPC connectors MPC connectors make it easy to quickly connect-disconnect and transfer fluid or media anywhere in your process. Simply push the two...Read More Description
Brand: CPC
|
Product ID: 258-1326-FLS
|
Availability: MTO
$27.06
5/PK
$31.83
$27.06
5/PK
Save $4.77
Made to Order Ships within 4-6 Weeks
CPC MPC Connector Coupling Insert (Male) MPC22006T03 - MPC to 3/8" HB, Non-Valved, Polycarbonate (PC), Class VI

CPC

CPC MPC Connector Coupling Insert (Male) MPC22006T03 - MPC to 3/8" HB, Non-Valved, Polycarbonate (PC), Class VI

$31.83 $27.06
CPC MPC Connector Coupling Insert (Male) MPC22006T03 - MPC to 3/8" HB, Non-Valved, Polycarbonate (PC), Class VI

CPC

CPC MPC Connector Coupling Insert (Male) MPC22006T03 - MPC to 3/8" HB, Non-Valved, Polycarbonate (PC), Class VI

$31.83 $27.06
Pack Size: 5/PK

MPC connectors

MPC connectors make it easy to quickly connect-disconnect and transfer fluid or media anywhere in your process. Simply push the two halves together to connect and disconnect by pressing the thumb latch to separate. To protect the lines before and between transfers, caps and plugs are available for sealing off disconnected halves and optional locking sleeves are available to prevent accidental disconnects. Coupling halves can be rotated while connected to reduce tube kinks. The MPC offers additional flexibility when changing to a larger tubing size, with the Back-to-Back adapter connecting to the MPX product. Choose from a full line of male and female MPC connectors and configurations, in sizes to fit 1/8", 1/4" and 3/8" tubing. For a quick connection rely on the MPC series connectors.

  • Ergonomic thumb latch: Easy to operate - even with gloved hands.
  • USP Class VI materials: Meets biocompatibility requirements.
  • Membrane Pull Tabs: Ensure simultaneous and secure removal of both membranes.
  • Parting line-free hose barb: Eliminates potential leak path.
  • ADCF materials: Meet BSE/TSE requirements.
  • Media and buffer transfer
  • Sampling
  • Filtration process
  • Harvest and collection
  • Upstream and downstream connections
Operating Conditions (Fluid Transfer):
Pressure Vacuum to 60 psi, 4.14 bar
Temperature Polycarbonate: -40°F to 250°F (-40°C to 121°C) & Polysulfone: -40°F to 300°F (-40°C to 149°C)
Materials:
Main Component Polycarbonate (purple tint) & Polysulfone (amber tint) (white)
Locking Sleeves Polysulfone (white)
Thumb latches Polycarbonate (white), PVDF (white)
O-rings Silicone (clear), platinum-cured; Buna-N (black) - (not USP Class VI or ADCF)
Sterilization:
Autoclave Polycarbonate: Up to 250°F (121°C), 30 minutes, up to 10 repitions. Sterilize uncoupled only. & Polysulfone: Up to 270°F (132°C) for 60 minutes, up to 25 repetitions. Sterilize uncoupled only.
Gamma Irradiation Up to 50 kGy irradiation
Other:
Tubing sizes 1/8", 1/4" and 3/8" ID (3.22mm, 6.4mm and 9.5mm ID)
Gamma Irradiation Up to 50 kGy irradiation
CV Value:
Cv~5.5 (79.25) max
CV values are based on gpm and psi, and lpm and bar (show in parentheses).
MPC connectors

Click on Datasheet link for a full list of our product datasheets!
