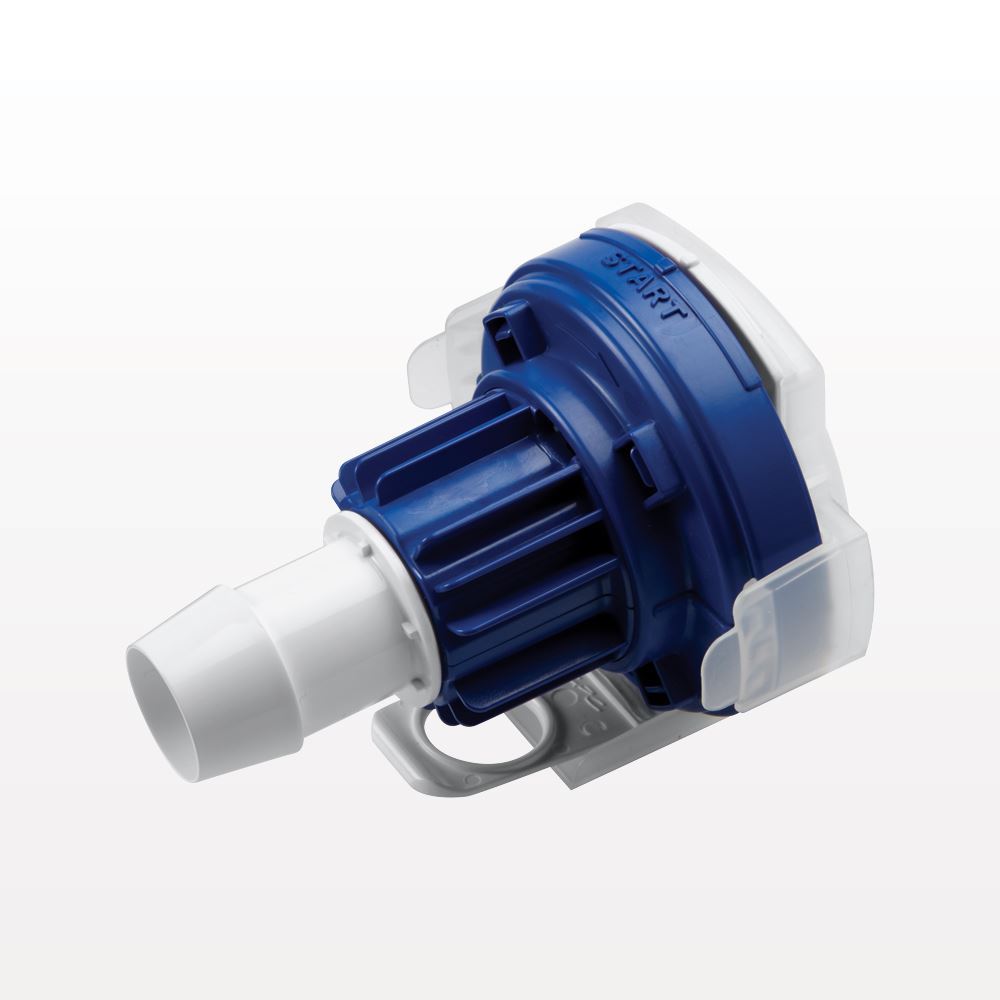

1 Hose Barb AseptiQuik Insert, High Temperature

1 Hose Barb AseptiQuik Insert, High Temperature

AseptiQuik® X Connectors The AseptiQuik X 1-inch large format connectors provide quick and easy sterile connections for high flow applications, even in non-sterile...Read More Description
Brand: CPC
|
Product ID: AQX22016HT-1
|
Availability: MTO
$358.38
$421.62
$358.38
Save $63.24
Made to Order Ships within 4-6 Weeks
1 Hose Barb AseptiQuik Insert, High Temperature

CPC

1 Hose Barb AseptiQuik Insert, High Temperature

$421.62 $358.38
1 Hose Barb AseptiQuik Insert, High Temperature

CPC

1 Hose Barb AseptiQuik Insert, High Temperature

$421.62 $358.38
Title: 1/PK

AseptiQuik® X Connectors

The AseptiQuik X 1-inch large format connectors provide quick and easy sterile connections for high flow applications, even in non-sterile environments. The ease-of-use €œTWIST-PULL-TWIST€� design enables users to quickly transfer large volumes of media easily with less risk of operator error. The connector's robust design provides reliable performance without the need for clamps, fixtures or tube welders. Biopharmaceutical manufacturers can now make 1€� sterile connections with the quality and market availability they expect from the leader in single-use connection technology.

  • TWIST-PULL-TWIST Design: Intuitive? three-step connection process reduces risk of operator error.
  • Membrane Pull Tabs: Ensure simultaneous and secure removal of both membranes.
  • Robust Construction: Repeatable and reliable performance with no additional hardware required.
  • Integrated Lock Ring: Secures final connection preventing disassembly.
  • CPC Click: Audible confirmation of completed assembly steps.
  • Media and buffer transfer
  • Sampling
  • Filtration process
  • Harvest and collection
  • Upstream and downstream connections
Sterilization:
Gamma Up to 50 kGy irradiation
Autoclave High Temp (HT) version: Up to 266°F (130°C) for 30 minutes
Operating Conditions (Fluid Transfer):
Pressure Up to 60 psi, 4.1 bar
Temperature 39°F to 104°F (4°C to 40°C)
Typical Flow Rate Cv ~ 14.4 max
Materials:
Main Components Polycarbonate (white)
Lock Ring Polycarbonate, PVDF (blue) & Polycarbonate (blue, standard version), USP Class VI, ADCF
Pull Tabs Polycarbonate (white, HT version), USP Class VI, ADCF
Caps Polypropylene (clear), USP Class VI, ADCF
Seals Silicone (clear), platinum-cured, USP Class VI, ADCF & Polyethlene (standard version), USP Class VI, ADCF
Membrane Hydrophobic polyethersulfone (HT version), USP Class VI
CV Value:
Cv~14.4 max
Cv values are based on gpm and psi, and lpm and bar (shown in parentheses).
Other:
Termination Size 3/4" and 1" ID hose barb (19.0mm and 25.4mm), 1-1/2"
AseptiQuik® X Connectors

Click on Datasheet link for a full list of our product datasheets!
