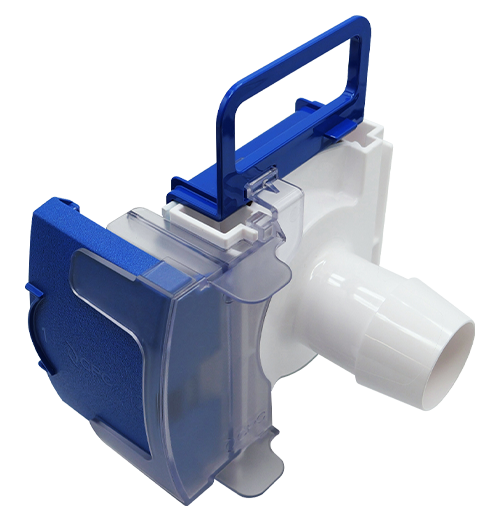

AseptiQuik® W Connectors

Genderless AseptiQuik® W Connectors with nominal 1.5" flowpath enable quick and easy sterile connections, in large-volume, high-flow production, and process intensification environments. The 1", 1 ¼€�, and 1 ½€� genderless design simplifies system integration and minimizes the risk of operator error. The connectors€™ robust construction provides reliable performance without the need for clamps or fixtures. Biopharmaceutical manufacturers benefit from interchangeable 1", 1 ¼€�, and 1 ½€� flow solutions for full-scale bioprocessing production environments with the quality and market availability they expect from the leader in the single-use connection technology.

  • Genderless: Eases single-use systems specifications with one part number for both halves.
  • FLIP-ALIGN-PULL-SNAP: Intuitive four-step connection process reduces risk of operator error.
  • Secure Side Latches: Increases connector robustness for wide variety of applications.
  • No Secondary Component Needed: No need to purchase and store extra materials or tools to complete your sterile connection process.
  • Largest AseptiQuik Flow Diameter (1.5" Nominal Flow Path): Move liquid medias faster to increase process efficiency.
  • Media and buffer transfer
  • Sampling
  • Filtration process
  • Harvest and collection
  • Upstream and downstream connections
Operating Conditions (Fluid Transfer):
Pressure Up to 60 psi, 4.1 bar & Up to 75 psi, 5.1 bar for 48 hours
Temperature 34°F to 104°F (1°C to 40°C)
Typical Flow Rate Cv Value Range: 39 to 118
Termination Size 1", 1 1/4", 1 1/2" hose barb, 1 1/2" Sanitary (25.4mm, 31.75mm, 38.1mm, 38.1mm)
Materials:
Connector Polycarbonate (white)
Shipping Clip Polycarbonate (white)
Pull Tabs/Caps Polycarbonate (white, HT version)
Pull Tab Guide Polyphenylsulfone (gray)
Side Latch Polyphenylsulfone (blue)
Seals Silcone (clear), platinum-cured
Membrane Hydrophobic Polyethersulfone (HT version), PTFE strip sticker
CV Value:
Gamma Up to 50 kGy irradiation
Autoclave High Temp (HT) version Up to 266°F (130°C) for 60 minutes
Cv~1.2 max (1/2" hose barb)
Cv values represent the approximate expected flow rate in gallons per minute of water at room temperature for a 1 PSI pressure drop. The flow is generally constrained by the smallest diameter, which in some cases will be the termination diameter and not the Nominal Flow Path.
