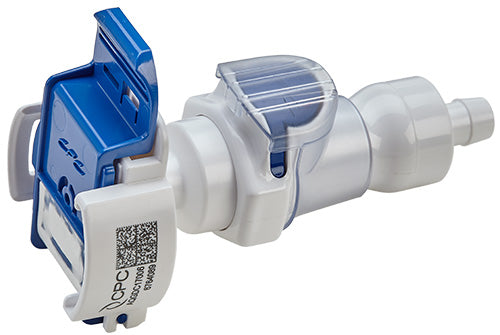

3/8" Hose Barb AseptiQuik G Disconnect

3/8" Hose Barb AseptiQuik G Disconnect

AseptiQuik® G DC Connectors Introducing the first all-in-one, genderless, single-use connection technology to offer both a sterile connection and a sterile disconnection. With...Read More Description
Brand: CPC
|
Product ID: AQGDC17006-5
|
Availability: MTO
$983.56
$1,157.13
$983.56
Save $173.57
Made to Order Ships within 4-6 Weeks
3/8" Hose Barb AseptiQuik G Disconnect

CPC

3/8" Hose Barb AseptiQuik G Disconnect

$1,157.13 $983.56
3/8" Hose Barb AseptiQuik G Disconnect

CPC

3/8" Hose Barb AseptiQuik G Disconnect

$1,157.13 $983.56
Pack Size: 5/PK

AseptiQuik® G DC Connectors

Introducing the first all-in-one, genderless, single-use connection technology to offer both a sterile connection and a sterile disconnection. With the AseptiQuik G DC connector, manufacturers can make quick and easy sterile connections, even in non-sterile environments. The intuitive Flip - Click - Pull design of the AseptiQuik G DC connector enables users to transfer media easily with less risk of operator error. After transfer is complete, a simple two-step disconnection maintains media sterility by preventing external organisms from entering into the media flow path. The connector's robust design and automatic shutoff valves provide reliable performance without the need for clamps, fixtures or tube welders.

  • Genderless: Eases single-use systems specifications with one part number for both halves.
  • FLIP - CLICK - PULL: Intuitive? three-step connection process reduces risk of operator error.
  • Simple Two-Step Disconnection: Maintains media sterility in each half by preventing external organisms from entering the flow path.
  • Membrane Pull Tabs: Ensure simultaneous and secure removal of both membranes.
  • Automatic Shutoff Valves: Eliminate the need for pinch clamps or tube welders.
  • Protective Thumb Latch Cover: Eliminates accidental disconnects.
  • Alloy C-276 internal flow path spring: Enables broader application compatibility.
  • Media and buffer transfer
  • Sampling
  • Filtration process
  • Harvest and collection
  • Upstream and downstream connections
Operating Conditions (Fluid Transfer):
Pressure Up to 60 psi, 4.1 bar & Up to 75 psi, 5.1 bar for 48 hours
Temperature 34°F to 104°F (1°C to 40°C)
Typical Flow Rate Cv Value Range: 0.8 to 1.90 for AseptiQuik® G DC hose barb terminations
Materials:
Connector Polycarbonate (white)
Thumb latch Polycarbonate (blue)
Pull Tabs/Caps Polycarbonate (blue, standard version)
Seals Silicone (clear), platinum-cured
Membrane Polyethylene
Springs Alloy C-276
CV Value:
CV Value Range: 0.8-1.90
Cv values represent the approximate expected flow rate in gallons per minute of water at room temperature for a 1 PSI pressure drop. The flow is generally constrained by the smallest diameter, which in some cases will be the termination diameter and not the Nominal Flow Path.
Sterilization:
Gamma Up to 50kGy irradiation
Other:
Termination Size 1/4", 3/8", 1/2" hose barb (6.4mm, 9.5mm, 12.7mm)
AseptiQuik® G DC Connectors

Click on Datasheet link for a full list of our product datasheets!
