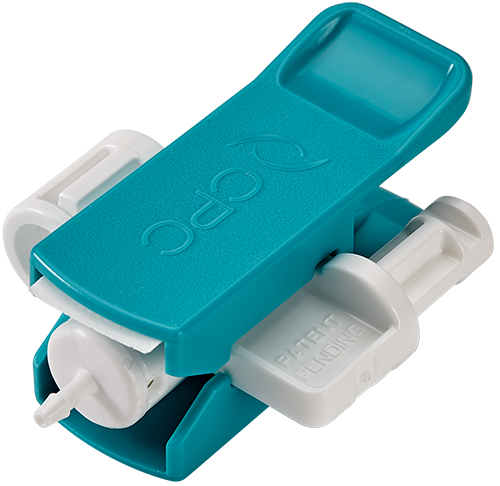

1/16" Hose Barb Genderless MicroCNX® Connector

1/16" Hose Barb Genderless MicroCNX® Connector

MicroCNX® Connectors MicroCNX® aspetic connectors are the only micro-connectors that provide a simple, efficient method of connecting tubing for small-format biomanufacturing assemblies. The...Read More Description
Brand: CPC
|
Product ID: CNX17001HT-25
|
Availability: MTO
$955.50
$1,124.12
$955.50
Save $168.62
Made to Order Ships within 4-6 Weeks
1/16" Hose Barb Genderless MicroCNX® Connector

CPC

1/16" Hose Barb Genderless MicroCNX® Connector

$1,124.12 $955.50
1/16" Hose Barb Genderless MicroCNX® Connector

CPC

1/16" Hose Barb Genderless MicroCNX® Connector

$1,124.12 $955.50
Pack Size: 25/PK

MicroCNX® Connectors

MicroCNX® aspetic connectors are the only micro-connectors that provide a simple, efficient method of connecting tubing for small-format biomanufacturing assemblies. The MicroCNX series is engineered specifically for the challenging conditions of biological media transfer in bioprocessing, cell therapy, and gene therapy applications. The connector comes in a range of tubing sizes featuring a luer connection option to create a sterile, closed connection on an existing luer connection. The ULT/Nano versions are ideal for assemblies in cryogenic freezing cassettes or connection to PVC tubing.

  • Aseptic, single-use connection technology: Do not have to make connections in the Bio Safety Cabinet (BSC), and is a better option for small format tubing where tube welding fails€”the only aseptic media transfer method that consistently and reliably transfers aseptic fluid at 1/16" tubing.
  • Ultra-Low Temperature and Chemical compatibility: Termination and flow path are made from PPSU to allow for increased chemical compatibility without deterioration, and able to handle harsh chemicals like liquid nitrogen and Dimethly Sulfoxide (DMSO). Can be frozen down to vaporized liquid nitrogen temperature (-190C) ?(MicroCNX ULT and MicroCNX Nano).
  • PULL-CLICK-PULL: Intuitive three-step connection process reduces risk of operator error.
  • Genderless: Eases single-use systems specifications with one part number for both halves.
  • CPC Click: Audible confirmation of assembly with no additional hardware required.
  • PVC tubing: Fully compatibility with all PVC tubing (MicroCNX ULT and MicroCNX Nano).
  • Low and ultra-low profiles: The smallest profile with a compact size that fits in freeze cassettes (MicroCNX ULT and MicroCNX Nano)
  • Low Hold-up Volume: Minimize lost fluid during transfers.
  • Media and buffer transfer
  • Sampling
  • Filtration process
  • Harvest and collection
  • Upstream and downstream connections
Operating Conditions (Fluid Transfer):
Temperature 34°F to 104°F (1°C to 40°C)
Pressure Up to 60 psi, 4.1 bar (Standard*) & Up to 75 psi, 5.1 bar for 48 hours (Standard*)
Up to 43.5 psi, 3 bar (ULT** and Luer***) & Up to 29 psi, 2 bar (Nano****)
Materials:
Main Components Polycarbonate (white), Polyphenylsulfone (off white)
Seals Silicone (clear), platinum-cured
Protective Cover Polypropylene (teal), Polycarbonate (gold)
Membrane Hydrophobic Polyethersulfone
Sterilization:
Gamma Up to 50 kGy irradiation
Autoclave One Cycle up to 266°F (130°C) for 60 minutes; (Standard*, Luer***, Nano****)
One cycle up to 250°F (121°C) for 30 minutes; (ULT**)
CV Value (Typical Flow Rate):
CV Value Cv Value Range 0.04-0.27 (Standard*, ULT**, Luer***)
Cv values represent the approximate expected flow rate in gallons per minute of water at room temperature for a 1 PSI pressure drop. The flow is generally constrained by the smallest diameter, which in some cases will be the termination diameter and not the Nominal Flow Path.
*STANDARD: CNX17001HT; CNX17002HT; CNX17003HT **ULT: CNX17101HT; CNX17102HT; CNX17103HT ***LUERS: CNX170LMHT; CNX170LFHT ****NANO: CNY17101HT; CNY17103HT; CNY17102HT
CPC-MicroCNX-Nano-Spec-Sheet CPC-MicroCNX-ULT-Spec-Sheet CPC-MicroCNX-Spec-Sheet
